jExperience architecture overview

November 14, 2023

Personalizing the customer experience is in every marketer’s mind and has a strong impact on customer data integration, across channels and applications. This overview helps developers and architects understand how they can use and extend jExperience and jCustomer to integrate customer data.



At a high level, a typical environment is composed of the following:

  • Jahia
    An extensible customer digital experience platform that contains CMS, WCM, and portal features.
  • jExperience
    An A/B testing and personalization solution that leverages the Jahia platform and integrates with jCustomer.
  • jCustomer
    The core Customer Data Platform (CDP) engine. jCustomer stores and indexes customer data and events generated by visitors.
  • Elasticsearch
    The backend storage, indexation and query server system that stores data in jCustomer. It is also highly scalable and offers high-availability mechanisms.

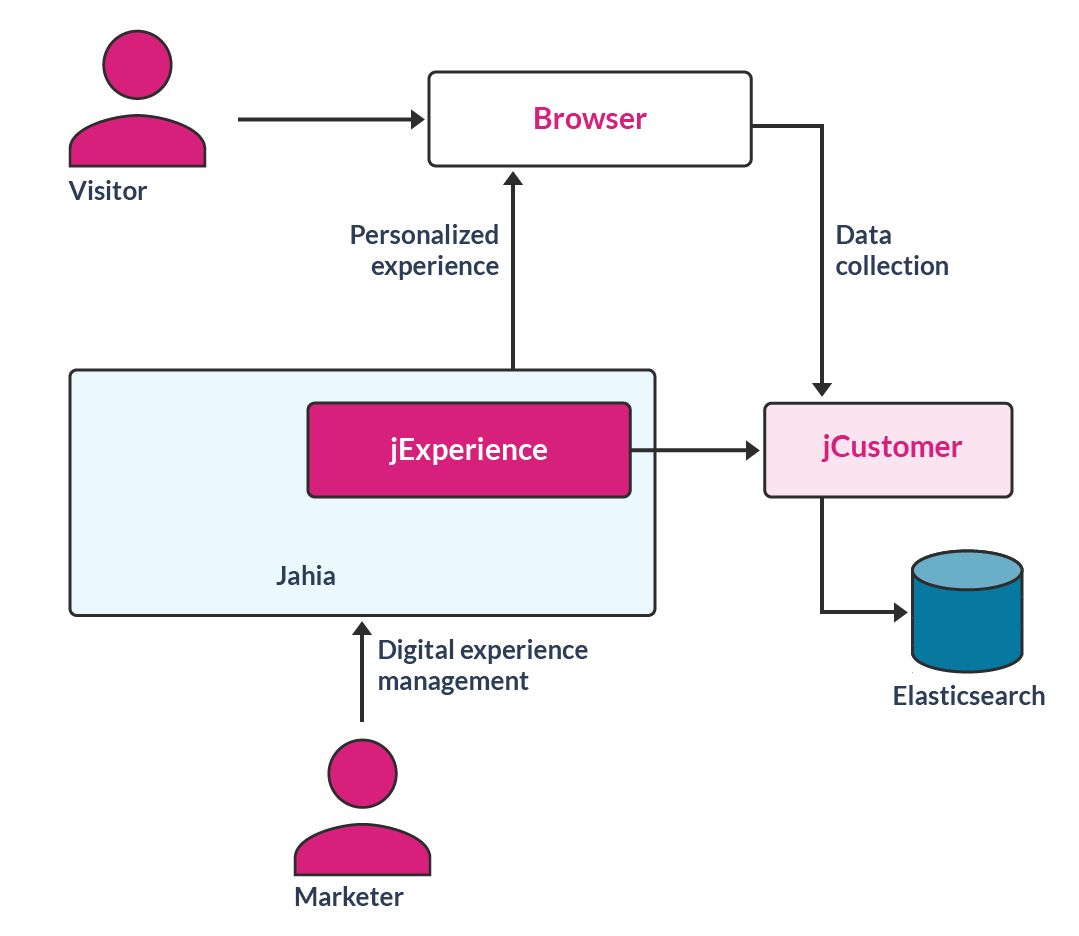

In a typical use case, when a visitor first opens a site, jExperience serves a Javascript tracker initialized with a context object. Once loaded in a page, the Javascript tracker provided by jExperience (called wem.js), will react to various user interactions and will send events to jCustomer via its REST API.

System Architecture

Although the diagram above provides a good overview of the data flow, the actual environment deployed for production is slightly more complex.


An install typically includes the following layers:

  • A reverse proxy
    Deployed as a single node or a cluster, the reverse proxy faces the internet and exposes HTTPS endpoints proxying the requests to the internal Jahia and jCustomer nodes over HTTP(s
  • Jahia nodes
    These are instances of the CMS with the jExperience modules deployed on them. These instances are deployed in clusters and constantly communicate with each other. Jahia communicates with jCustomer over HTTP(s).
  • jCustomer nodes
    These are instances of the CDP, are deployed in clusters and constantly communicate with each other. jCustomer communicates with Elasticsearch over HTTP(s).
  • Elasticsearch nodes
    The Elasticsearch nodes use the custom networking protocol specific to Elasticsearch to communicate between them.
Note: In the schema, arrows between groups of nodes indicate a relationship to each node. Arrows are not repeated to make the diagram easier to understand.

Ports and protocols

As shown in the above diagram, a collection of TCP ports is used by a typical jExperience installation. The following summary table lists the ports that need to be made available to ensure that jExperience and jCustomer works as expected.

Default Ports Service Reachable by Description
8080 Jahia Public interface Reverse Proxy Jahia’s interface used to provide access to the website(s) and access to jExperience.
5700-5800 jCustomer
jCustomer nodes

Used by Apache Karaf Cellar to keep track of cluster nodes and exchange configuration information

8181 jCustomer
Public interface

Reverse Proxy

jCustomer Public endpoint (exposed to the Internet) for event collection and context serving (for example profile, session, and segments)
9443 jCustomer
Private interface

Jahia nodes

jCustomer Administration endpoint, used to manage all jCustomer objects (for example segments and profile editing), also the jCustomer secure address (Endpoint used in a secure environment)
8102 jCustomer
Karaf console



SSH access to Karaf console, useful during development and to debug deployment issues. Although password protected, this should not be publicly exposed.
9200 Elasticsearch jCustomer,
Elasticsearch HTTP interface, used by jCustomer to talk to ElasticSearch and also used by other clients such as Kibana or other applications
5601 Kibana Jahia Access to the Kibana platform, providing a user interface over the data in the Elasticsearch cluster
