Managing modules

This document presents the module management interface in the administration. You can find information about our module management API in this section of the Configuration and fine tuning guide.

Modules installation

Administration UI

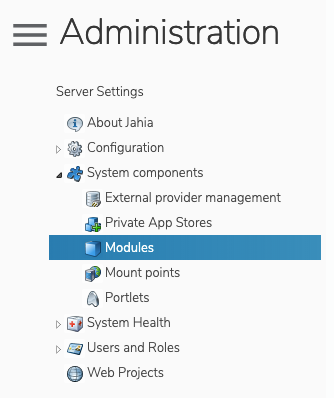

You can manage the modules from the Administration Mode>System components>Modules.

Module installation

A module can be installed on a Jahia instance

by uploading manually a package (a jar file containing several jars, each one being a module) in the Modules administration page
by uploading manually a jar file (an OSGi bundle for a unique module) in the Modules administration page

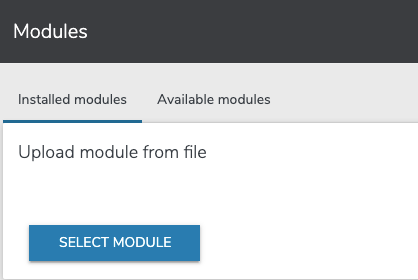

These two operations can be done from the “Installed modules” tab of the Module Management screen:

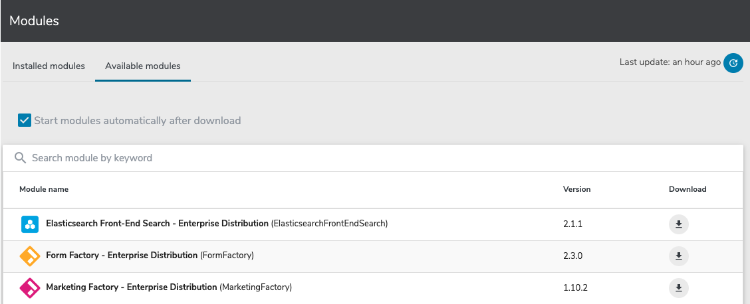

by using the Modules Management GUi and installing in one click a module from a distant Public or Private App Store

This can be done from the “Available modules” tab of the Module Management screen:

Basic information about modules

In the modules administration page, modules are presented in a list of 7 columns, displaying basic information

Module name: the name of the module
Module ID: unique ID that defines the module, only one module by ID can be installed on a server at a time.
Group ID: group id that defines the module, the couple group id/module id must be unique.
Details: a button to access to a page that displays more detailed information about the module.
Versions: shows the installed versions of the module, and possible actions on them. For each version, it also shows the OSGi status of the module (installed/resolved/started)
Status:
- active if the module is started
- inactive if the module is stopped
Used in site: 3 states possible
- In use: the module is activated on one or several sites
- In use (indirectly): the module is a dependency of a module activated on a site
- In use (templates): a site uses the module as template

In Development Mode, a column named “source” appears and shows a button to download sources or to open the module in the studio when sources are already available locally. In the case that a module is not used in any site, there’s also the button “Duplicate module” which allows the developer to create a copy of an existing module.

Using the “Search” input field, you will be able to quickly filter the modules, using their name, module and group IDs, status, etc.

Modules status

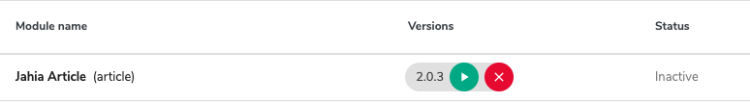

Inactive

The module is installed on the server (version 2.0.2 in the above example) but not currently started.

That means that Components, Views, templates, Rules, Workflows, Actions declared in the module are not usable at the moment. However, definitions are deployed, and exported classes are available for other modules.

The module can be started by clicking on the green button.

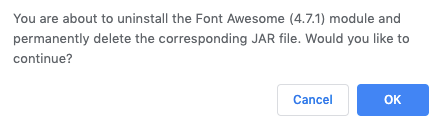

The module can also be undeployed (removed from the server). When a module is started it cannot be undeployed, administrators have to stop it first. You may also have to disable your modules from a site before being able to undeploy it.

Inactive with missing dependency

The module cannot be started until the dependency is resolved. The missing dependency can easily be identified as it is listed after "Depends on".

Active

When a module is started the stop button appears next to the active version. This does not mean that the module is activated /in use on a particular site.

The module can be stopped. If the module is a dependency of other module(s), they will be stopped too. All the views and templates defined by the module won’t be available anymore. Exported classes and node type definitions will always be available for other modules.

Error states

The system can encounter different errors when trying to deploy or start a new module.

Definitions errors

If the CND files cannot be parsed, the module won’t be started, and the definition error will be displayed in the administration. The module will be able to start once a module providing the missing definition is uploaded.

Spring context error

A module can be in the “resolved” OSGi state even if its spring context cannot be started. In that case, the information “Spring not started” is displayed next to the module version. More details (full stacktrace) will be visible in the log file.

In production mode, the module won’t be started if the Spring context cannot be loaded. In development, the module will be started and partly available (as shown below) – only spring context won’t be loaded.

Module not imported

In cluster, if the module is deployed on one node but has not been deployed on processing server yet, an error showing " Module not imported " will be displayed.

Rules errors

If the business rule (Drools) files cannot be parsed/compiled, the module will be marked as failed to start and the self-speaking error will be shown in module management screen.

Several versions available

Several versions of a module can be installed at the same time. It is possible to choose which version should be started. Only one version at a time can be started. When switching from one version to another, all sites using that module will be impacted at the same time. This should be used carefully, as different versions of the same module will be used for different parts:

Node types definitions always come from the latest version of the module
All installed versions export classes, with different versions. If another module use classes, it will by default use the latest version.
JSPs, Actions, RenderFilters, OSGi services, and other spring services will be taken from the active version of the module

If your modules contains definitions and/or export classes, it’s strongly advised that you start only the last version of the module, to have a consistent behavior.

The coexistence of several versions allows administrators to easily proceed to upgrades and, if necessary and the possible inconsistencies described earlier are fully understood, downgrades to the previous version, if for any reason the new version reveals a problem.

To switch from one version to another, simply click on the start button of the desired version, this will automatically stop the current activated version.

Status at deployment time

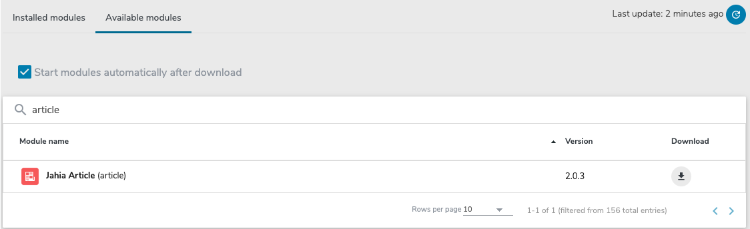

It is possible to choose whether or not a module should be automatically started when uploaded or (downloaded and installed from the store) by selecting or not the checkbox “ Start automatically after upload” (module upload) or “Start modules automatically after download” (download and install from the store):

These checkboxes are selected by default in a development server, and unselected in a production server. However, these default behaviors can be modified by adding the property jahia.modules.fileinstall.bundles.new.start in the jahia.properties file and setting its value to true or false.

Note that an uploaded/downloaded module from the store will not be automatically started if a newer version of this module is already active.

For example, we consider that the version 2.0.2 of the module article is already started. Then we upload the version 2.0.1 of this module, with the “start automatically” checkbox selected. The started version remains the 2.0.2 as it’s more recent than the 2.0.1. This is done in order to prevent the automatic start of an old module by mistake. You can then manually start the version 2.0.1 if needed.

Modules detailed information

You can access the module detail screen by clicking on the module line of the Installed modules tab.

The " details screen " of a module contains various sections:

Nodetypes

List all the Nodetypes declared by the module and specify if the nodetype is also a component (usable as a drag and drop object in the edition interfaces).

The installed node types are always coming from the latest version of the module that has ever been deployed. Whenever a new version of the module is deployed, its definitions are immediately installed into the repository. Starting or stopping the module does not have any impact on the definitions, and it is not possible to go back to an earlier version of the definitions. Note that even undeploying the module won't remove the definitions.

Dependencies

List all other modules the current module is relying-on. If dependencies are missing, the module cannot be started.

Versions

List the versions of the module installed available on the server. Only one version can be started at a time. From this feature, like on the modules list, you can switch from versions, only one version of a module can be started at a time. You can undeploy the version of a module, but only when the module is stopped.

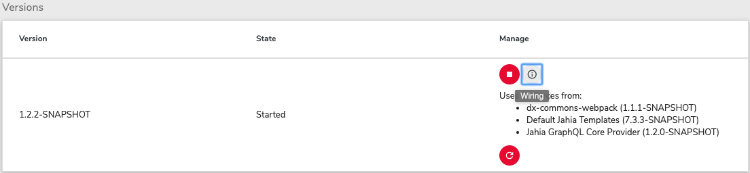

The wiring button lists the other modules providing resources to this version of the module, as well as the other modules which are using the resources of this version of the module.

In this case, the module calendar is using resources from the version 7.3.0 of the “Default Jahia Template” module, and provide resources to the versions 1.0.4 and 2.0.2 of the modules “Jahia Base Demo Components” and “Jahia Base Demo Templates”.

In some cases it can happen that the module is using the resources provided by a wrong version of another module (a module which is not started for instance), then clicking on the “Refresh” button will fix this issue, and then the module will use the latest version of the module providing the resources.

Usage in sites

Enabling a module on a site

Enabling a module on a site makes its components, views and templates available on the site.

Disabling a module from a site

Simple disabling

Disabling a module from a site impeach the usage of components (content objects) declared by the module by editors. The content already created with that module remains present but cannot be copied nor edited. Templates defined in the module are not available anymore. Jahia won’t be able to generate pages relying on those templates and that will lead to 404 errors.

Disabling a module and purge content

When disabling a module from a site, administrators can choose to purge all content related to this module in the site (content created using the definitions declared by this module). Be aware that this operation cannot be reversed, if you are sure that the content should not appear anymore, you can do the purge, if you just want editors to stop creating new content using one of the content-types defined by the module, do not purge and just disable the module.
