Installing and configuring SAML2 authentication

The SAML2 Authentication Valve module enables you to activate SAML on one or more of your Jahia websites.

Installing the SAML2 Authentication Valve module

To make SAML available in Jahia, deploy the module and install it on your site. You must also deploy and install the Jahia Authentication and JCR Authentication Provider modules. For more information on deploying modules, see Installing a module tutorial.

Creating a keystore

You can manually create the keystore that will communicate with the Identity Provider (IdP). The following command shows example values used to create a keystore.

keytool -genkeypair -alias jahiakeystorealias -keypass changeit -keystore sp.jks -storepass changeit -keyalg RSA -keysize 2048 -validity 3650

When you run the command, you will be prompted with the following question. Your answer must match your Jahia site domain name (jahia.server.name).

• What is your first and last name?: jahia.server.name (This value must match your Jahia site domain name)

Configuring SAML2 authentication

SAML configuration is stored in a file in the karaf/etc folder. There is one configuration file per site. You can configure SAML in Site Settings in Jahia.

To configure SAML:

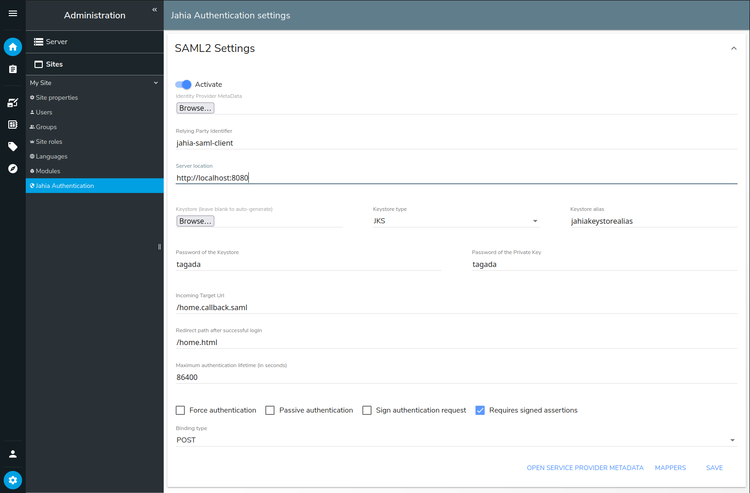

1. In Jahia, navigate to Administration>Sites>Jahia Authentication and expand SAML2 Settings.



2. Toggle the Activate slider to enable.

3. In Identity Provider MetaData file, click Choose File and upload the Identity Provider Metadata XML file provided by the Identity Provider (IdP), for example, Shibboleth or Google.

4. In Relying Party Identifier, provide the identifier of your Service Provider that is sent to the IdP.

5. In Server Location, provide the public URL of your Jahia site, for example, http://localhost:8080. It will be used to generate the Service Provider metadata.

6. In Keystore, Keystore type, Keystore Alias, Password of the Keystore, and Password of the Private Key enter values that you defined when creating the server key and certificate. You can also leave the keystore empty and fill in the other values to automatically generate a new keystore. Note that the generated keystore will use the hostname for the CN entry of the certificate.

7. In Incoming Target Url, enter the URL where the IdP will return the SAML response. The default value is /home.callback.saml.

8. In Redirect after successful login, enter the Jahia relative URL where users are redirected after successful authentication, for example, /home.html.

9. In Maximum authentication lifetime, enter the maximum age of the authentication on the IdP. Users must reauthenticate if the session on the IdP is older than the specified time.

10. Select from the following options:

    • Force authentication
      If set, users must authenticate every time they login, even if the user has already a session on the IdP. This cannot be used along with Passive authentication.

    • Passive authentication If set, users log in transparently without any interaction. Users are authenticated only if the IdP is able to do so without asking the user. This cannot be used along with Force authentication.

    • Sign authentication request Sign the request sent to the IdP.

    • Requires signed assertions If set, will only accept signed assertions from the IdP.

11. In Binding type, select the SAML binding type used to communicate with the IdP.

12. Click Save.

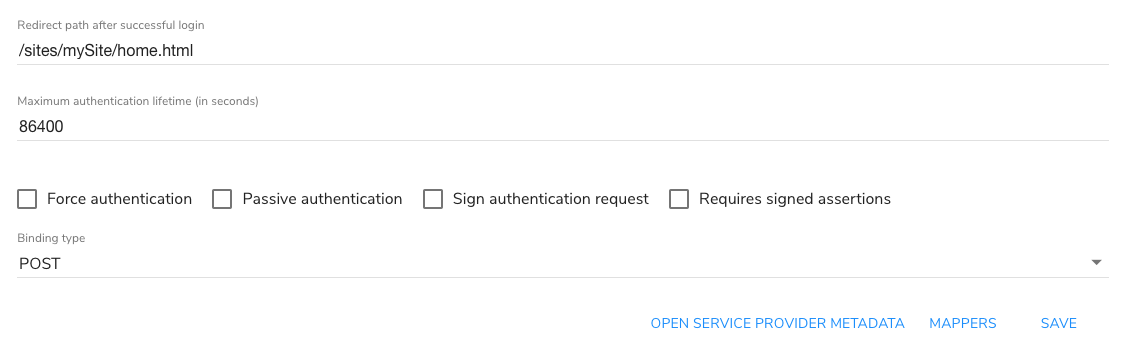

After saving your SAML configuration, the Open Service Provider Metadata and Mappers buttons become available at the bottom of the page. You can use Open Service Provider Metadata to download service provider metadata based on the configuration. This can be required to configure the IdP.

Configuration example

# SAML Configuration file - autogenerated
siteKey = digitall
enabled = true
identityProviderMetadata = ...
relyingPartyIdentifier = test-local
serverLocation = http://localhost:8080
keyStore = ...
keyStoreAlias = saml2clientconfiguration
keyStorePass = changeit
privateKeyPass = changeit
incomingTargetUrl = /home.callback.saml
postLoginPath = /home.html
maximumAuthenticationLifetime = 86400
forceAuth = false
passive = false
requireSignedAssertions = false
signAuthnRequest = true
bindingType = urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST
keyStoreType = PKCS12
mapperName = jcrOAuthProvider

Mapping users

Next, map the fields that are used to authenticate users in your IdP to the fields used to authenticate users in Jahia. You specify how to map user data to a user in Jahia. You first select the IdP field that is used as the username. Then you map it to the appropriate username field in Jahia. You can also choose a specific mapper that creates a new user in the JCR.

To map users:

1. On the SAML2 Settings page, click Mappers.

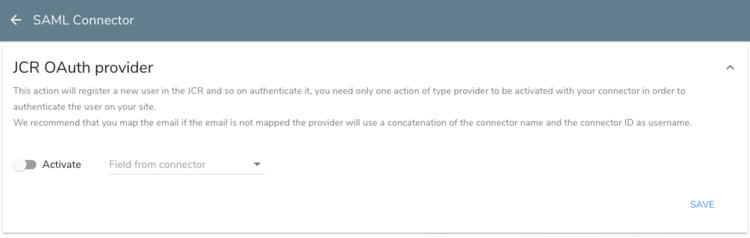

   The SAML Connector page opens.

2. Expand the provider type that is available for you to configure. The following example shows how to configure settings for the JCR Authentication Provider module.



3. Toggle the Activate slider to enable.

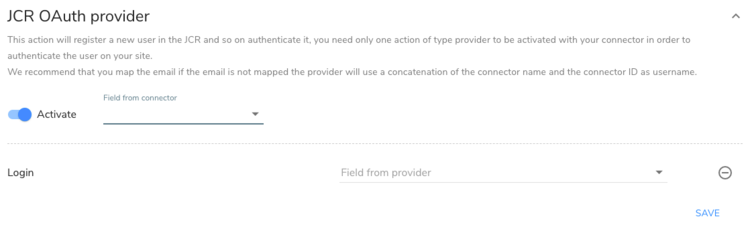

4. In Field from connector, select the fields to map from your IdP. For example, select Login.

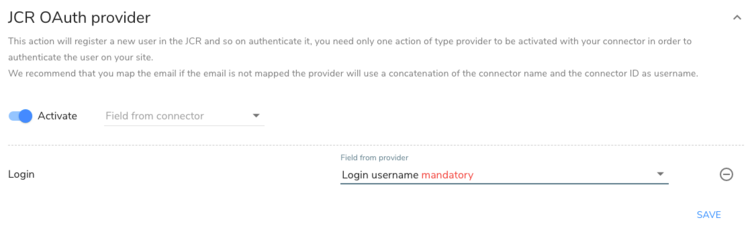

5. In Field from provider, select the fields to map to in Jahia. For example, select Login username mandatory.



6. Click Save.

Next, add a login button or form to a page in your site to redirect Jahia users to the SAML IdP.

Adding a login form

Users are redirected from Jahia to the SAML IdP when they call the *.connect.saml?siteKey={sitekey} url. To redirect users, you can add a simple link in the page (for example, http://localhost/sites/mySite/home.connect.saml?siteKey=mySite) or add an HTML form.

Jahia also provides a simple form component, SAML2 Login, with the module. The component displays a simple login button which calls the action. When a user clicks the login button, they are redirected to the IdP with the SAML login request from Jahia. Once logged in, the IdP redirects to Jahia with a signed assertion containing the user information.

Using redirect query param

If you want the user to come back to a specific page after login, you can add a redirect query param to the URL. For example, to redirect the user to the /about-us.html page after login, use the following URL:

/sites/mySite/home.connect.saml?siteKey=mySite&redirect=/sites/mySite/about-us.html

You can also customize the SAML2 Login component to add a redirect query param to the URL.

<c:if test="${not renderContext.loggedIn}">
    <form action="${renderContext.mainResource.node.name}.connect.saml" method="GET">
        <input type="hidden" name="siteKey" value="${renderContext.site.siteKey}"/>
        <input type="hidden" name="redirect" value="${renderContext.mainResource.nodePath}.${renderContext.mainResource.templateType}"/>
        <input type="submit" value="${currentNode.displayableName}">
    </form>
</c:if>

Considerations about siteKey query param

As the SAML configuration is per site, you must include a siteKey query param in the connection URL, for example, ?siteKey=mySite and also in the SAML configuration Incoming Target Url. If you don't do so, the SAML authentication will not work and you will get an error in the log file.

You can omit that if the server name is mapped to a site in Jahia and the server name is always used in URLs. Thus, the site can be retrieved from the server name and the query param is not needed. Without the query param, the SAML authentication won't work using http://localhost access.

SAML authentication process and private pages or sites

On some occasions, you might want to protect some pages or an entire site using SAML authentication by enforcing user permissions on pages and maybe the site itself. In this case, you must ensure that the SAML authentication is triggered correctly.

The default Jahia configuration will always return a 404 HTTP error (Not Found) when a user tries to access a private page or site without being authenticated. This is done for security reasons, to avoid exposing the existence of private pages or sites. For some reason, you may want to change that behavior and redirect users to the SAML IdP especially when a complete site is private to start the user's login process when accessing the site.

Configure Jahia to allow 401 HTTP errors (Unauthorized)

The configuration is located in jahia.properties and cannot be changed from the Jahia UI. You must edit the file directly on the server. It is also a server configuration that applies to all sites hosted on the server.

# Define behaviour when the user has no access to a resource (page or file)
# silent : returns a 404 when the resource does not exist or is not accessible
# authorizationError : returns a 401 for guest users and 403 for authenticated users without access permission
protectedResourceAccessStrategy=authorizationError

Thus, when a user tries to access a private page or site without being authenticated, they will get a 401 HTTP error (Unauthorized). The default 401 Jahia page includes a login form that will not work with SAML authentication but the embedded Jahia authentication.

To ensure that the 401 error page contains a link or form to redirect users to the SAML IdP, you must customize the 401 error page.

Follow the documentation page about Custom error pages

In the case where the site itself is not public (aka guest cannot read it), the custom error page won't be able to load from the template set, and you have to put it directly in the Jahia file system:

cp error_401.jsp <tomcat_home>/webapps/ROOT/errors/sites/<mySite>/error_401.jsp

Such a sample jsp page could be:

<%@page language="java" contentType="text/html; charset=UTF-8" session="false" %>
<!DOCTYPE html>
<html lang="en">
<head>
    <title>SAML Login</title>
</head>
<body>
<div style="margin: 50px; font-family: Arial, sans-serif;">
    The resource you try to access is protected, and you don't have the required permissions.
    <br/>
    Please log in with an account that has the required permissions.
    <br/><br/>
    <a href="${pageContext.request.requestURI}.connect.saml?siteKey=mySite">Go to SAML login page</a>
</div>
</body>
</html>

Related links

More details on configuration options can be found in the pac4j library documentation: http://www.pac4j.org/3.2.x/docs/clients/saml.html
